BGS Geological Centred Map at 1:50,000
British Geological Survey Plan supplied at a scale of 1:50,000.

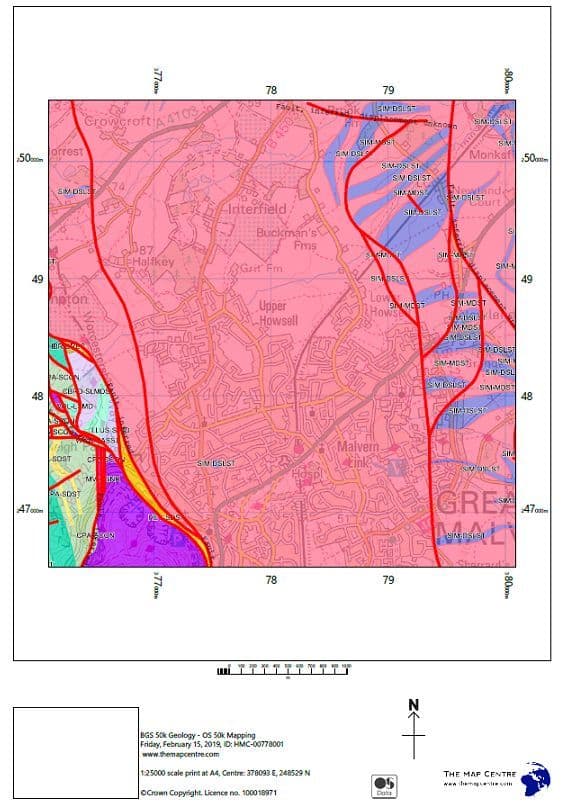

The map shows the available geological information for the selected area, supplied as a Layered PDF file by email.
Please Note, some layers may not contain information if it is not relevant or there is no information for that area.
Please Note: There is no Geological Data for parts of Wales - please see the map image which shows areas Not available as greyed out.
The map Layers supplied in the PDF are,
- Ordnance Survey 1:50,000 Base Mapping
- Bedrock
- Bedrock Labels
- Superficial
- Superficial Labels
- Artificial
- Mass Movement
- Linear - Alteration Area
- Linear - Fault
- Linear - Fold Axis
- Linear - Fossil Horizon
- Linear - Landform
- Linear - Mineral Vein
- Linear - Rock
These Maps are available at paper sizes,
A4 Ground Coverage Approx. - 8.0 x 10.0 km
A3 Ground Coverage Approx - 12.0 x 16.0 km
A2 Ground Coverage Approx - 18.5 x 24.8 km
A1 Ground Coverage Approx - 27.0 x 37.0 km
A0 Ground Coverage Approx - 39.5 x 54.5 km
If you would like any help or advice prior to ordering please call Jonathan on 01432 266322
If you would like a Map Preview of the area that will be covered, emailed to you, please contact Jonathan on either jonathan@themapcentre.com or 01432 266322.
