1:2,500 Ordnance Survey A4 Sitemap - Location Plan

£25.00 £30.00 (inc. VAT)
The Ordnance Survey A4 Sitemap is designed especially for Planning Applications and Land Registry purposes.

Ordnance Survey Siteplan Location Plan at 1:2,500



The Ordnance Survey A4 Sitemap is designed especially for Planning Applications and Land Registry purposes.

This map is fully Land Registry Compliant

Sent by post - 6 x A4 copies or

Sent By Email - 1 x A4 PDF

It uses the most up-to-date Ordnance Survey large scale mapping, showing buildings, boundaries etc., and has all the information required by local authority planning departments - including a Scale Bar and North Arrow

If you need to have height information included on your Siteplan, please select this from the dropdown menu. The contours will appear in 3 layers within the PDF, which can be displayed on the map as selected.

Contours layers are at 10m and 5m and 1m

The Contours depict a DTM - A Bare Earth Model (no Vegetation or Building Heights)

Contours are not usually required for a Planning application

This is one of the usual scales of plan requested by Land Registry, but if you need further advice please feel free to call us.

The map covers an area of 16Ha, that is 400m x 400m on the ground

If you would like to see a map preview before you buy or if you would like any assistance please call Jonathan on 01432 266322.

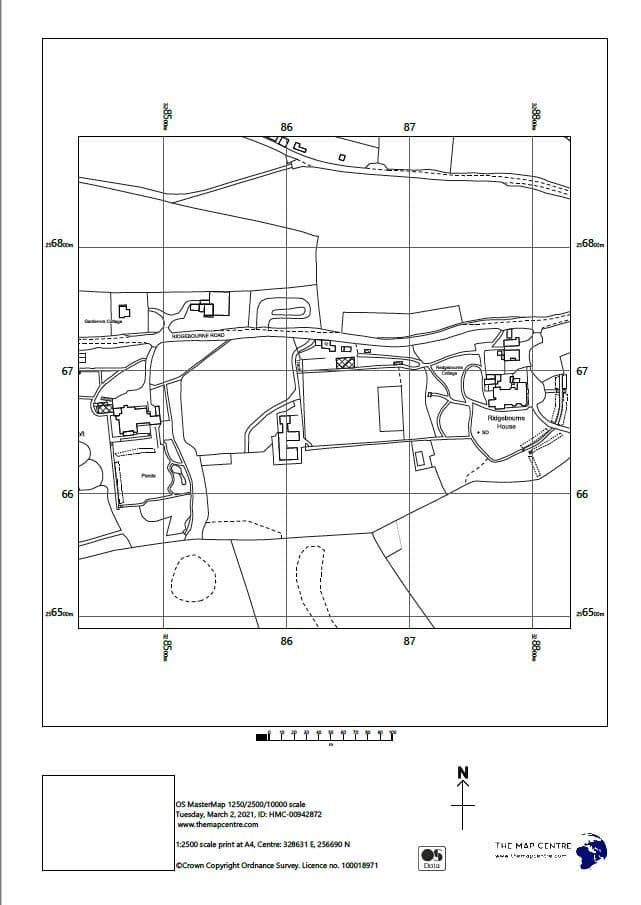

This 1:2,500 scale Sitemap, often referred to as Location Plan is designed to show your property in relation to those around it.

It is often used in conjunction with a 1:500 please see the Related Products below

To order, enter the site-centre information in the boxes provided above.

This should be either the first line of the address and postcode or six figure co-ordinates.
This product is only available only for England, Scotland & Wales (not Northern Ireland)

PLEASE NOTE: 1:1,250 is the appropriate scale for urban areas. If you order 1:2,500 A4 Sitemap in an urban area, the cost of the mapping may increase due to Ordnance Survey scale bands. If this is the case, we will contact you before processing the order to verify you would like to continue with the increased price or alter the order to 1:1,250.
