Ordnance Survey Siteplan Location Plan at 1:200
The Ordnance Survey A4 Sitemap is designed especially for Planning Applications and Land Registry purposes.
Please check this is the correct scale for your needs.
This map is fully Land Registry compliant
Sent by post - 6 x A4 copies or
Sent By Email - 1 x A4 PDF
It uses the most up-to-date Ordnance Survey large scale mapping, showing buildings, boundaries etc., and has all the information required by local authority planning departments including a Scale Bar and North Arrow
This is one of the usual scales of plan requested by Land Registry and local authority planning departments, but if you need further advice please feel free to call us.
The map covers an area of 32m x 32m on the ground.
If you need to have height information included on your Siteplan, please select this from the dropdown menu. The contours will appear in 3 separate layers within the PDF, which can be displayed and printed on the map as selected.
Contours layers are at 10m and 5m and 1m intervals
The Contours depict a DTM - A Bare Earth Model (no Vegetation or Building Heights)
Contours are not usually required for a Planning application
If you would like to see a map preview before you buy or if you would like any assistance please call Jonathan on 01432 266322.

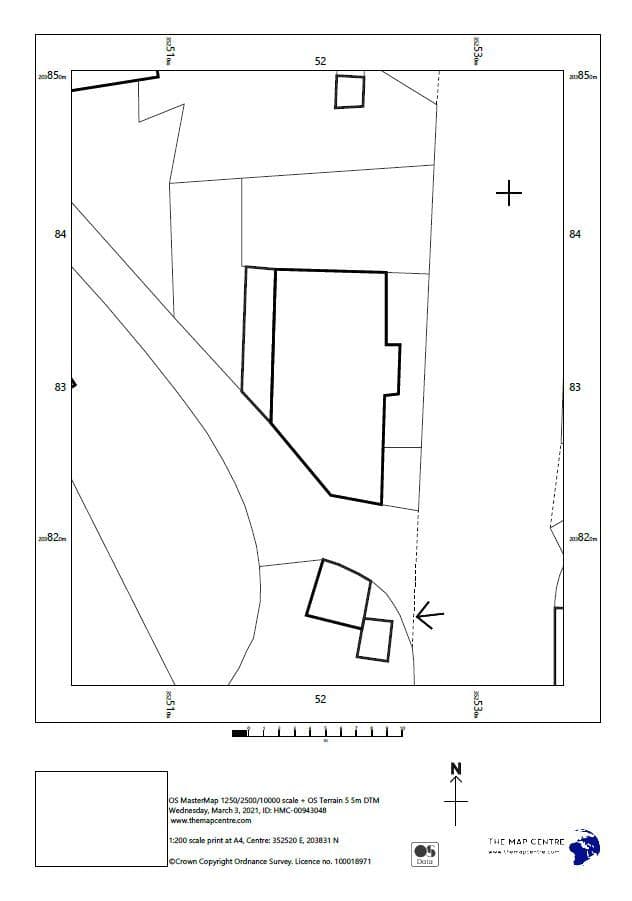

This 1:200 scale Sitemap, often referred to as Block plan is designed to show your property in great detail
It is often used in conjunction with a 1:1250 please see the Related Products below
To order, enter the site-centre information in the box provided above.
This should be either the first line of the address and postcode or six figure co-ordinates.
This product is only available only for England, Scotland & Wales (not Northern Ireland)
