1:1,250 Ordnance Survey A4 Sitemap "Location Plan"

The Ordnance Survey A4 Sitemap is designed especially for Planning Applications and Land Registry purposes.

Map Centre - FIRST LINE OF THE ADDRESS

Map Centre - POSTCODE

Map Centre - Ordnance Survey 12 Figure Grid Ref. (Optional)

Your Email Address

Details Reviews Specifications

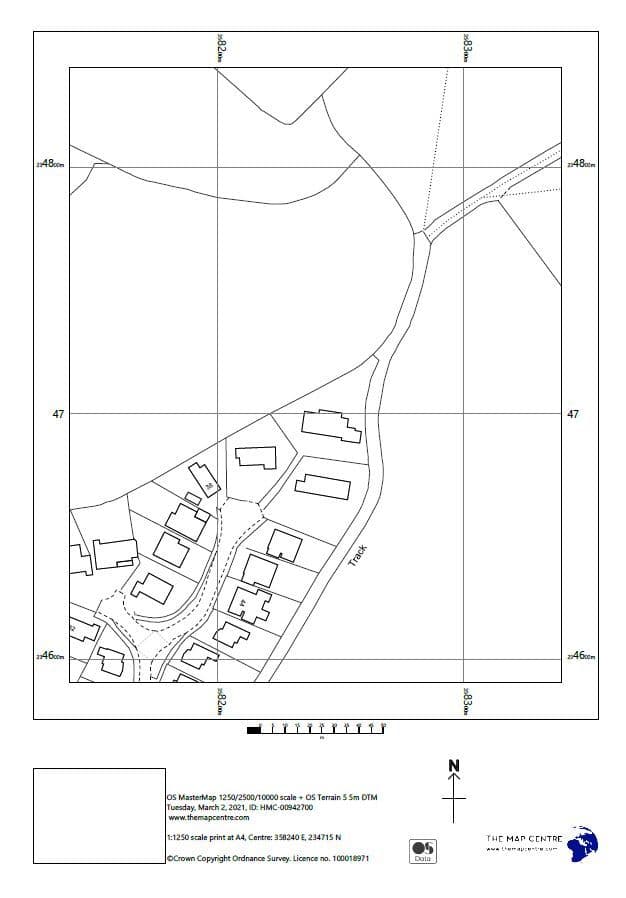

Ordnance Survey Siteplan Location Plan at 1:1,250

6 paper copies sent by post or an A4 PDF by email

The Ordnance Survey A4 Sitemap is designed especially for Planning Applications and Land Registry purposes.

This map is fully Land Registry compliant

Sent by post - 6 x A4 copies or

Sent By Email - 1 x A4 PDF

The plan uses the most up-to-date Ordnance Survey large scale mapping, showing buildings, boundaries etc., and has all the information required by local authority planning departments including a Scale Bar and North Arrow

This is one of the usual scales of plan requested by Land Registry and local authority planning departments, but if you need further advice please feel free to call us.

The map covers an area of 4Ha, that is 200m x 200m on the ground.

If you need to have height information included on your Siteplan, please select this from the dropdown menu. The contours will appear in 3 separate layers within the PDF, which can be displayed and printed on the map as selected.

Contours layers are at 10m and 5m and 1m intervals

The Contours depict a DTM - A Bare Earth Model (no Vegetation or Building Heights)

Contours are not usually required for a Planning application

If you would like to see a map preview before you buy or if you would like any assistance please call Jonathan on 01432 266322.

This 1:1,250 scale Sitemap, often referred to as a Location Plan is designed to show your property in relation to those around it.

It is often used in conjunction with a 1:500 please see the Related Products below

To order, enter the site-centre information in the box provided above.

This should be either the first line of the address and postcode or six figure co-ordinates.
This product is available only for England, Scotland, Wales & Northern Ireland.

Please note: During the check out process please select 'UK Standard' as your method of delivery - you will not be charged for this
