1:1,000 Ordnance Survey A4 Sitemap "Block Plan"

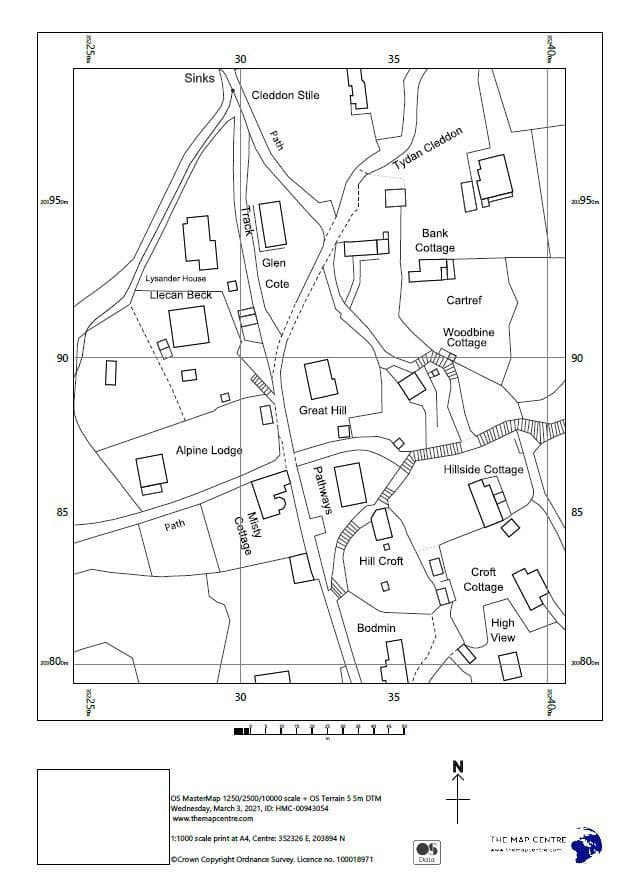

Ordnance Survey Siteplan Block Plan at 1:1,000


The Ordnance Survey A4 Block Plan is designed especially for Planning Applications and Land Registry purposes.

Please check this is the correct scale for your needs.

This map is fully Land Registry compliant

Sent by post - 6 x A4 copies or

Sent By Email - 1 x A4 PDF

It uses the most up-to-date Ordnance Survey large scale mapping, showing buildings, boundaries etc., and has all the information required by local authority planning departments including a Scale Bar and North Arrow

This is one of the usual scales of plan requested by Land Registry and local authority planning departments, but if you need further advice please feel free to call us.

The map covers an area that is 160m x 200m on the ground.

If you need to have height information included on your Siteplan, please select this from the dropdown menu. The contours will appear in 3 separate layers within the PDF, which can be displayed and printed on the map as selected.

Contours layers are at 10m and 5m and 1m intervals

The Contours depict a DTM - A Bare Earth Model (no Vegetation or Building Heights)

Contours are not usually required for a Planning application

If you would like to see a map preview before you buy or if you would like any assistance please call Jonathan on 01432 266322.

To order, enter the site-centre information in the box provided above.

This should be either the first line of the address and postcode or six figure co-ordinates.
This product is available only for England, Scotland, Wales & Northern Ireland.
